自动上传APRS天气信息的python脚本

一、python脚本说明

1.python代码由ba7ib编写,转载请注明。

2.脚本可以在OpenWrt设备上运行,目前使用华为HG225D路由器运行正常。

3.脚本中拉取的温湿度、气压、风、雨、PM2.5、甲醛、空气质量、日出日落等天气数据来自和风天气。

4.运行脚本只需修改代码中的Callsign,Passcode,Key,City几个参数即可。

Key到http://www.heweather.com/注册申请,选择免费套餐。

自动上传APRS天气信息的python脚本

City代码:https://where.heweather.com/index.html

自动上传APRS天气信息的python脚本

二、上传python脚本

1.保存以下脚本为weather.py

2.WinSCP上传至路由器root目录

三、路由器配置

1.安装依赖环境(视不同路由器按需安装)

自动上传APRS天气信息的python脚本

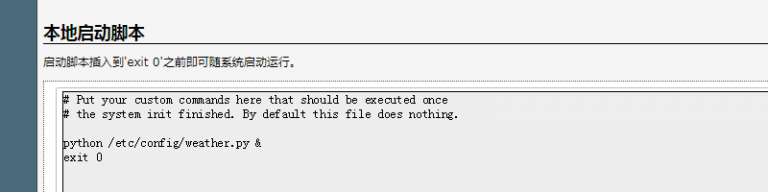

2.设置启动项

python2 /etc/config/weather.py &

自动上传APRS天气信息的python脚本

3.设置运行时间

①putty运行:

crontab -e

②进入编辑状态,最后一行添加:

*/15 * * * * python2 -u weather.py (##15分钟运行一次)

或是在路由器计划任务手动添加:
自动上传APRS天气信息的python脚本

四、Putty启动脚本

python2 weather.py &

自动上传APRS天气信息的python脚本

五、附:Python 脚本

#!/usr/bin/python

import os
import json, urllib2, string
from datetime import datetime
import socket
import sys
from time import sleep
import re, ssl

ssl._create_default_https_context = ssl._create_unverified_context

Callsign = '呼号+SSID'
Passcode = '验证码'
Server = 's.aprs.cn:14580'
Protocal = 'any'
City = '填写你所在的城市CID'
Key = '填写你注册申请得到的key'

def send_aprsframe(aprs_frame):
 sended = False
 Aprs_Sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
 while not sended:
  Aprs_Sock.connect((Server.split(':')[0], int(Server.split(':')[1])))
  Aprs_Sock.send('user %s pass %s vers BA7IB Scripts (Python) \n' % (Callsign, Passcode) )
  sReturn = Aprs_Sock.recv(4096)
  if sReturn.startswith("#"):
   print "Succesfully logged to APRS-IS! %s" % sReturn
   Aprs_Sock.send('%s\n' % aprs_frame)
   sended = True
  sleep(1)
 Aprs_Sock.shutdown(0)
 Aprs_Sock.close()

class APRSFrame:
 def __init__(self):
  self.source = None
  self.dest = None
  self.path = []
  self.payload = unicode()

 def export(self, encode=True):
  tnc2 = "%s>%s,%s:%s" % (self.source, self.dest, ','.join(self.path), self.payload)
  if len(tnc2) > 510:
   tnc2 = tnc2[:510]
  if encode:
   tnc2 = tnc2.encode('ISO-8859-1')
  return tnc2

def bc():
 bcargs_weather = {
  'callsign': Callsign,
  'weather': 'https://free-api.heweather.com/v5/weather?lang=en&city=%s&key=%s' % (City, Key),
 }
 while True:
  frame = get_weather_frame(**bcargs_weather)
  if frame:
   send_aprsframe(frame)
  sleep(300)

def process_ambiguity(pos, ambiguity):
 num = bytearray(pos)
 for i in range(0, ambiguity):
  if i > 1:
   i += 1
  i += 2
  num[-i] = " "
 return str(num)

def encode_lat(lat):
 lat_dir = 'N' if lat > 0 else 'S'
 lat_abs = abs(lat)
 lat_deg = int(lat_abs)
 lat_min = (lat_abs % 1) * 60
 return "%02i%05.2f%c" % (lat_deg, lat_min, lat_dir)

def encode_lng(lng):
 lng_dir = 'E' if lng > 0 else 'W'
 lng_abs = abs(lng)
 lng_deg = int(lng_abs)
 lng_min = (lng_abs % 1) * 60
 return "%03i%05.2f%c" % (lng_deg, lng_min, lng_dir)

def mkframe(callsign, payload):
 frame = APRSFrame()
 frame.source = callsign
 frame.dest = u'APRS'
 frame.path = [u'TCPIP*']
 frame.payload = payload
 return frame.export()

def get_weather_frame(callsign, weather):
 try:
  req = urllib2.Request(weather)
  wea_str = urllib2.urlopen(req).read()
  if wea_str == -1:
   print "Sorry that I can't find the weather info of this city now, please check or retry. weather string = %s " % wea_str
   sys.exit(-1)
  else:
   w = json.loads(wea_str, encoding='utf-8')["HeWeather5"][0]
   timestamp = w['basic']['update']['utc']
   enc_lat = process_ambiguity(encode_lat(string.atof(w['basic']['lat'])), 0)
   enc_lng = process_ambiguity(encode_lng(string.atof(w['basic']['lon'])), 0)
   wenc = "%s%s%s" % (enc_lat, '/', enc_lng)
   wind = w['now'].get('wind', {})
   wenc += "_%03d" % string.atoi(wind['deg'])
   wenc += "/%03d" % string.atoi(wind['spd'])
   wenc += "g%03d" % 0
   cond = w['now']
   wenc += "t%03d" % round(string.atof(cond['tmp']) / (float(5)/9) + 32)
   wenc += "r%03d" % 0
   wenc += "p%03d" % round(string.atof(cond['pcpn']) / 25.4)
   if 'hum' in cond:
    wenc += "h%02d" % string.atoi(cond['hum'])
   else:
    wenc += "h..."
   if 'pres' in cond:
    wenc += "b%04d" % round(string.atof(cond['pres']) * 10)
   else:
    wenc += "b..."
   if 'aqi' in w:
    aqi = w['aqi']['city']
    wenc += ",...,...,...,000,%03d,%03d" % (string.atoi(aqi['pm10']), string.atoi(aqi['pm25']))
    wenc += ",."
   if 'daily_forecast' in w:
    df = w['daily_forecast'][0]['astro']
    ext_info = " Air:%s SunR/S:%s/%s MoonR/S:%s/%s" % (aqi['qlty'], df['sr'], df['ss'], df['mr'], df['ms'])
   else:
    ext_info = ""
   payload = "=%s%s Info@UTC%s" % ( wenc, ext_info, timestamp)
   return mkframe(callsign, payload)
 except:
  print "Weather decode error"
  return None
bc()
